Sleeps 6
-
2 Slides
-
Rear Bedroom
-
40ft Long
-
25,950 lbs
-
Capilano, Excelsior, Sherbrooke

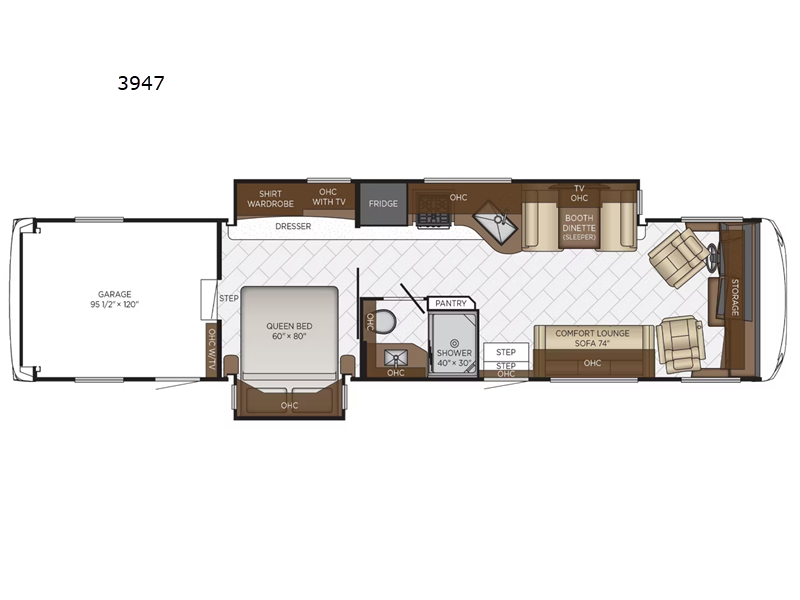

3947 Floorplan
Specifications
Sleeps | 6 | Slides | 2 |
Length | 39 ft 11 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 11 in | Int Height | 7 ft |
Interior Color | Capilano, Excelsior, Sherbrooke | Exterior Color | Devon, Havant, Truro |
Hitch Weight | 6000 lbs | GVWR | 32000 lbs |
Dry Weight | 25950 lbs | Cargo Capacity | 6050 lbs |
Fresh Water Capacity | 75 gals | Grey Water Capacity | 60 gals |
Black Water Capacity | 40 gals | Tire Size | 275/80R 22.5 |
Furnace BTU | 35000 btu | Generator | 8 kW Cummins Onan® Quiet Series |
Fuel Type | Diesel | Engine | Cummins 6.7 |
Chassis | Freightliner | Horsepower | 340 hp |
Fuel Capacity | 80 gals | Wheelbase | 274 in |
Available Beds | Queen | Torque | 700 ft-lb |
Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
Convection Cooking | Yes | Cooktop Burners | 3 |
Shower Size | 40" x 30" | Number of Awnings | 1 |
Axle Weight Front | 12000 lbs | Axle Weight Rear | 20000 lbs |
Garage Size | 10 ft | LP Tank Capacity | 25 gal. |
Water Heater Type | On Demand | AC BTU | 43500 btu |
TV Info | Samsung LED TV; LR, BR, 32" Garage | Awning Info | Apex Dual Stage Armless with Strip Lighting |
Washer/Dryer Available | Yes | Gross Combined Weight | 33000 lbs |
Shower Type | Standard | Electrical Service | 50 amp |
Description
Newmar Canyon Star Class A diesel toy hauler motorhome 3947 highlights:
- 10' Garage with Rear Ramp Access
- Comfort Lounge Sofa
- Shirt Wardrobe
- Queen Bed Slide Out
- Booth Dinette
The Newmar Canyon Star Class A diesel toy hauler has room for plenty of toys! The 10' garage with rear ramp access is designed for ATV & normal clearance motorcycles, and can also be accessed by a side entrance door. You can organize your toys with the tie-down tracks and you won't have to worry about scuffs with the diamond tread rubber flooring. The living area has a comfort lounge sofa and a booth dinette which can both be converted to sleeping space, and the full-wall slide here will open up your whole coach. You'll sleep comfortably in the private bedroom which has a queen bed, wardrobe with a dresser, and an overhead console with a TV.
With any Canyon Star Class A diesel toy hauler motorhome by Newmar, you will enjoy a Freightliner front engine diesel chassis with 340HP to power your trips. The garage has so many features that will make your trip easier, like a fueling station, ramp door, assist handle, and even prep for an optional washer/dryer. There's also a rear hitch for towing your car. In the garage you can also add optional electric lift bunk beds or a pedestal table with seating if you need extra room for guests. Keep everything going with the six 6V house batteries, 2000 watt Tru Sine inverter, and a 10 watt solar panel to charge it all. There's also an 8.0 kW Cummins Onan Quiet Series Generator for additional power needs. You'll appreciate the on demand water system, and you'll be extra comfortable with the propane gas furnace with ducted heat plus dash heater and air conditioner.
Features
Standard Features (2026)
Exterior
- Exterior Full-Paint Masterpiece Finish™ with Clearcoat
- Chrome Baggage Door Locks
- Entrance Door Assist Handle
- Entrance Door Automatic Step
- Entrance Door With Automatic Triple Step In Garage Area
- Convex Chrome Exterior Mirrors With Defrost and Remote Control
- Front Cap Diamond Shield Protection
- Fueling Station For Garage Area
- 10' Rear Ramp Garage Access Designed For ATV & Normal Clearance Motorcycle
- Smart Level Hydraulic Leveling Jacks With Bluetooth Compatible Touchpad
- Mud Flaps
- Rear Hitch For Towing Car
- Stainless Steel Exterior Trim Pieces On Front Cap And Grill Area
- Tow Guard Rear Protective With Stainless Newmar Letters
- Undercoating
Optional
- Agawa Full Painted Exterior Graphics
- Ausable Full Painted Exterior Graphics
- Havasu Full Painted Exterior Graphics
- Flag Pole Bracket
- Rear Ramp Garage Door Without Hump, Functions As A Deck with Patio Awning And Lights
- Rear Ramp Garage Power Door - Not Available with Rear Ladder (M100)
- Rear Ladder - Not Available with Power Rear Ramp Door (T028)
- Special Order Exterior Colors - Must Also Order Awning Color Option
- Windshield Temporary Protection - For Transport Only
Construction
Standard
- 16" On-Center Aluminum Frame Sidewalls & Roof Construction
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- One-Piece Molded Fiberglass Roof
- Polar Pak R19 Batten Insulation In Roof
- Slideout Automatic Mechanical Lock Arms - Scissor Style
Chassis
Standard
- Anti-Lock Braking System
- Cruise Control
- Dash Panel Optiview - Freightliner®
- Glass Dash Instrument Panel
- Freightliner Custom Chassis®, 340HP Front Engine Diesel, 274" Wheel Base
- Tilt and Telescopic Steering Wheel
- Aluminum Wheels
Optional
- Freightliner Custom Chassis®, 340HP Front Engine Diesel, 274" Wheel Base, California Compliance
Windows, Awnings & Vents
Standard
- Armless Apex Dual Stage Awning With Strip Lighting
- Fan-Tastic® Vent With Rain Sensor In Kitchen, Bathroom & Garage Area
- Power Screen For Rear Garage Cargo Door
- Skylight Above Shower
- Slideout Covers
- Frameless Double-Pane Tinted Safety-Glass Windows
- One-Piece Tinted Windshield
Optional
- Charcoal Tweed Awning - Must Be Ordered With Option B005 Special Order Exterior Graphics
- Hogan Sparrow Awning - Must Be Ordered With Option B005 Special Order Exterior Graphics
- Power Window For Driver
Air Conditioning & Heating
Standard
- Two 15K BTU Air Heat Pump Conditioners In Main House Area, One 13.5K BTU Heat Pump Air Conditioner In Garage
- Dash Heater & Air Conditioner
- Defrost Fans Built Into Front Overhead
- Driver & Passenger Dash Overhead Ventilation System
- Propane Gas Furnace With Ducted Heat
Electrical
Standard
- Accent Lights In Slideout Fascia Trim
- Automatic Generator Start On Low Battery Or Temperature Setting
- Battery Disconnect Switch For House Battery
- Cable TV Connection
- Dash Radio, Cameras And Monitors To Power Up From Both House Batteries & Ignition
- Daytime Running Lights
- Drain Lift Pump
- 50 Amp Electrical Service With Flexible Cord And Automatic Transfer Switch
- Emergency Engine Start Switch
- Energy Management System
- Fog Lights
- Six 6V House Batteries
- Interior Courtesy Lights
- 2000W Tru Sine Inverter with CPAP Prep
- LED Light On Awning
- LED Lights In Ceiling
- Lights In Exterior Storage Compartments, Controlled By An Interior Master Switch
- Lights In Wardrobes
- Multiplex Lighting Control System
- 10.1" Multiplex Monitor System In Center Of Coach with Interior Lighting & HVAC Controls
- Newmar App
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 12V Recept Auxiliary On Dashboard
- Slideout Switch Manually Operated Hold To Run
- 10W Solar Panel To Charge Chassis Battery
- Transfer Switch With Surge Protector
- USB Outlet At Dash For Driver Use
- USB Outlet At Passenger Seat Area
Optional
- Four 120W Flexible Solar Panels On Roof
- Solar Prep With 6 Gauge Wire Ran From Roof To First Storage Compartment
Plumbing & Bath
- Standard
- Demand Water System
- Exterior Shower Located On Off-Door Side
- Sewage Holding Tank Rinse
- Fiberglass Surround Shower With Shower Door
- Dometic® 321 China Bowl
- Water Filter For Entire Unit
- Water Heater Bypass System
- Truma AquaGo® Instant Continuous Flow Water Heater
Optional
- Fold-Down Shower Seat
Cabinets & Furniture
Standard
- Concealed Cabinet Door Hinges
- Extended Rotation Concealed Cabinet Door Hinges For Washer and Dryer
- Soft-Close Cabinet Drawers
- Cabinet Drawers With Full Extension Ball Bearing Guides
- Flush Cooktop Cover, Matching Countertop Material
- Polished Solid-Surface Countertop In Bathroom And Bedroom
- Polished Solid-Surface Countertop In Kitchen, Undermounted Sink & Sink Covers
- Williamsburg Sleeper Booth Dinette
- Drawers Underneath Dinette Booth Seats
- Driver & Passenger Seats With Six-Way Power
- Lifts On Bed Top
- Plush Pillow Top Mattress
- Molded Silverware Divider Tray
- Pullout Pantry Shelves
- Passenger Seat Tablet Holder
- Passenger Seat With Manual Foot Rest
- Williamsburg Sofa And Front Seats
- Dusk Maple Cabinets - Suede Finish
Optional
- Electric Lift Bunk Beds With Seating, Pedestal Table & Removable Floor Rug In 10' Garage
- Chiffon Maple Cabinets - Suede Finish
- Cove Glazed Maple Cabinets - Suede Finish
- Mesa Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Cove Glazed Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Dusk Maple Cabinets - Suede Finish
- Two-Tone Chiffon/Mesa Maple Cabinets - Suede Finish
- Euro Booth Dinette
- Chestnut Glazed Maple Hardwood Cabinets - Suede Finish
- Sable Maple Hardwood Cabinets - Suede Finish
- Sedona Maple Hardwood Cabinets - Suede Finish
- Summit Maple Hardwood Cabinets - Suede Finish
- Two-Tone Summit/Chestnut Glazed Maple Hardwood Cabinets - Suede Finish
- Two-Tone Summit/Sable Maple Hardwood Cabinets - Suede Finish
- Two-Tone Summit/Sedona Maple Hardwood Cabinets - Suede Finish
- Air R5 Square Corner Mattress
- 74" Theater Seating Powered) With Reading Lights
Appliances
Standard
- 110V Heat Pads For Holding Tanks
- 30" Stainless Steel Microwave Convection With Air Fryer Feature with Three-Burner Cooktop with Piezzo Ignition
- 10 Cu. Ft. Norcold® Refrigerator
Optional
- Central Vacuum With Tool Kit
- Two-Burner Induction Cooktop Replaces Standard Cooktop
- Dishwasher Under Cooktop
- 11 Cu. Ft. Whirlpool® Refrigerator
- 11 Cu. Ft. Whirlpool® Refrigerator with Ice Maker
- Washer and Dryer Prep In Garage with Extra Grey Tank
- Stacked Two-Piece Splendide® Washer and Dryer In Garage with Extra Grey Tank
Interior
Standard
- Auto Motion Manual Double Roller Shades On Windows (Not On Garage Windows)
- Auto Motion Power Shade At Windshield & Manual Shades At Driver & Passenger Side Windows
- Fitted Non-Quilted Bedspread & Accent Pillow
- Color-Coordinated ABS Dash Panel
- Decorative Wall Art
- Interior Passage Inlayed Six Panel Design Doors
- Diamond Tread Rubber Garage Floor
- Interior Assist Handle At Main Entry Door
- Padded Vinyl Ceiling Panels
- Shoe Storage Located In Entrance Door Step Compartment
- Hardwood Slideout Fascia
- Tie Down Track In Garage Floor
- Vinyl Plank Floor In Kitchen, Bathroom, Bedroom & Living Areas
- Wastebasket In Kitchen Base Under Sink
- Integrated Window Blind System On Entry Door
- Woven Material On Slideout Floors
Optional
- Sherbrooke Interior Decor
- Capilano Interior Decor
- Excelsior Interior Decor
- Two Wheel Chocks For Garage Area
Audio, Video & Accessories
Standard
- Side View Cameras Displayed Onto Rear View Monitor Screen
- Dash Radio With 180W Harman/JBL Sound System
- AM/FM/DVD Exterior Radio With Two Speakers Inside Garage Area & Two Speakers Outside
- 10 BC Fire Extinguisher In Garage
- 10 BC Fire Extinguisher, Carbon Monoxide, Smoke Detectors
- High Definition Component Wiring
- Bluetooth Microphone For Dash Radio
- Rear View Color Monitor System With Audio
- Satellite Dish Prep On Roof
- Bose® Sound System Soundbar
- TV Jack And 110V Recept In Door-Side Exterior Storage Compartment
- 32" Samsung® LED TV In Garage Area
- Samsung® LED TV In Living & Bedroom Areas
- Winegard® Digital Crank-Up TV Antenna
- Xite Dash Radio with Apple CarPlay®, 9" Dual Monitors with Nav-N-Go Navigation System
Optional
- Exterior Entertainment Center In Storage Compartment with 43" Samsung® 4K LED TV & Bose® Soundbar
- SiriusXM® Radio Capability with Antenna (Does Not Include Monthly Subscription)
- Starlink Internet System
- 43" Samsung® LED TV In Front Overhead
- Denali/Spruce WiFi Ranger LTE
- WiFi System Everest with Aspen Interior Router
- Winegard® Automatic Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (Rts-20B)
- Winegard® Automatic Open Face Satellite Dish - For DISH® HD & Bell HD TV (SK2-100) with Auto Stow
- Winegard® Automatic Open Face SWM Satellite Dish - For DIRECTV® Standard/HD (SK2-300) with Auto Stow
- Winegard® In Motion Dome Satellite Dish - For DISH® Standard/HD, DIRECTV® Standard & Bell Canada (RtI-20B)
- Winegard® Rayzar Automatic Digital TV Antenna
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
-
Very helpful
Absolutely love this place. The staff is amazing and so helpful and friendly. A girl named Rachele helped us out and she was very knowledgeable and anticipated all our needs. Would definitely recommend you go there above anywhere else! -
1st Class Program
Never having owned an RV of any kind, we visited Dylan's in Jan '20, left w/an executed Agreement of Sale, and took delivery of our new Kountry Star in April. We revisited in June w/minor punch list items and to address minor loose ends that were a result of COVID/production related issues. Our experience -
Five Star Dealership
# 1 - The people. Anthony and Mark were very knowledgeable about the RV’s I was looking at. Be it via phone, text or in person they sincerely wanted to help whether I was a definite sale or just seeking information. Rachel called to make sure she had the required documents so the paperwork was complete
Loading
Campers Inn RV Signature Collection is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @856-228-0090 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
